As suggested by the name Hierarchical Data Format, an HDF5 file is hierarchically structured. The HDF5 group and link objects implement this hierarchy.

In the simple and most common case, the file structure is a tree structure; in the general case, the file structure may be a directed graph with a designated entry point. The tree structure is very similar to the file system structures employed on UNIX systems, directories and files, and on Apple Macintosh and Microsoft Windows systems, folders and files. HDF5 groups are analogous to the directories and folders; HDF5 datasets are analogous to the files.

The one very important difference between the HDF5 file structure and the above-mentioned file system analogs is that HDF5 groups are linked as a directed graph, allowing circular references; the file systems are strictly hierarchical, allowing no circular references. The figures below illustrate the range of possibilities.

In Figure 1, the group structure is strictly hierarchical, identical to the file system analogs.

In Figures 2 and 3, the structure takes advantage of the directed graph's allowance of circular references. In Figure 2, GroupA is not only a member of the root group, /, but a member of GroupC. Since Group C is a member of Group B and Group B is a member of Group A, Dataset1 can be accessed by means of the circular reference /Group A/Group B/Group C/Group A/Dataset1. Figure 3 illustrates an extreme case in which GroupB is a member of itself, enabling a reference to a member dataset such as /Group A/Group B/Group B/Group B/Dataset2.

Figure 1: An HDF5 file with a strictly hierarchical group structure		Figure 2: An HDF5 file with a directed graph group structure, including a circular reference		Figure 3: An HDF5 file with a directed graph group structure and one group as a member of itself

As becomes apparent upon reflection, directed graph structures can become quite complex; caution is advised!

The balance of this chapter discusses the following topics:

• The HDF5 group object (or a group) and its structure in more detail
• HDF5 link objects (or links)
• The programming model for working with groups and links
• HDF5 functions provided for working with groups, group members, and links
• Retrieving information about objects in a group
• Discovery of the structure of an HDF5 file and the contained objects
• Examples of file structures

2. Description of the Group Object

2.1 The Group Object

Abstractly, an HDF5 group contains zero or more objects and every object must be a member of at least one group. The root group, the sole exception, may not belong to any group.

Figure 4: Abstract model of the HDF5 group object

Group membership is actually implemented via link objects (see Figure 4). A link object is owned by a group and points to a named object. Each link has a name, and each link points to exactly one object. Each named object has at least one and possibly many links to it.

There are three classes of named objects: group, dataset, and named datatype (see Figure 5). Each of these objects is the member of at least one group, which means there is at least one link to it.

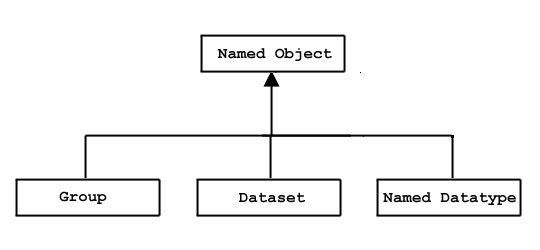

Figure 5:

The primary operations on a group are to add and remove members and to discover member objects. These abstract operations, as listed in Figure 6, are implemented in the H5G APIs, as listed in section 4, “Group Function Summaries.”

To add and delete members of a group, links from the group to existing objects in the file are created and deleted with the link and unlink operations. When a new named object is created, the HDF5 library executes the link operation in the background immediately after creating the object (i.e., a new object is added as a member of the group in which it is created without further user intervention).

Given the name of an object, the get_object_info method retrieves a description of the object, including the number of references to it. The iterate method iterates through the members of the group, returning the name and type of each object.

	Group size:size_t create() open() close() link() unlink() move() iterate() get_object_info() get_link_info()
	Figure 6: The group object

Every HDF5 File has a single root group, with the name /. The root group is identical to any other HDF5 group, except:

• The root group is automatically created when the HDF5 file is created (H5Fcreate).
• The root group has no parent, but, by convention has a reference count of 1.
• The root group cannot be deleted (i.e., unlinked)!

2.2 The Hierarchy of Data Objects

The names on the links must be unique within each group, but there may be many links with the same name in different groups. These are unambiguous, because some ancestor must have a different name, or else they are the same object. The graph is navigated with path names, analogous to Unix file systems (see section 2.3, “HDF5 Path Names”). An object can be opened with a full path starting at the root group, or with a relative path and a starting point. That starting point is always a group, though it may be the current working group, another specified group, or the root group of the file. Note that all paths are relative to a single HDF5 File. In this sense, an HDF5 file is analogous to a single UNIX file system. ¹

It is important to note that, just like the UNIX file system, HDF5 objects do not have names, the names are associated with paths. An object has an object identifier that is unique within the file, but a single object may have many names because there may be many paths to the same object. An object can be renamed, or moved to another group, by adding and deleting links. In this case, the object itself never moves. For that matter, membership in a group has no implication for the physical location of the stored object.

Deleting a link to an object does not necessarily delete the object. The object remains available as long as there is at least one link to it. After all links to an object are deleted, it can no longer be opened, although the storage may or may not be reclaimed. ²

It is also important to realize that the linking mechanism can be used to construct very complex graphs of objects. For example, it is possible for object to be shared between several groups and even to have more than one name in the same group. It is also possible for a group to be a member of itself, or to create other cycles in the graph, such as in the case where a child group is linked to one of its ancestors.

HDF5 also has soft links similar to UNIX soft links. A soft link is an object that has a name and a path name for the target object. The soft link can be followed to open the target of the link just like a regular or hard link. The differences are that the hard link cannot be created if the target object does not exist and it always points to the same object. A soft link can be created with any path name, whether or not the object exists; it may or may not, therefore, be possible to follow a soft link. Furthermore, a soft link's target object may be changed.

2.3 HDF5 Path Names

The structure of the HDF5 file constitutes the name space for the objects in the file. A path name is a string of components separated by slashes (/). Each component is the name of a hard or soft link which points to an object in the file. The slash not only separates the components, but indicates their hierarchical releationship; the component indicated by the link name following a slash is a always a member of the component indicated by the link name preceding that slash.

The first component in the path name may be any of the following:

• the special character dot (., a period), indicating the current group
• the special character slash (/), indicating the root group
• any member of the current group

Component link names may be any string of ASCII characters not containing a slash or a dot (/ and ., which are reserved as noted above). However, users are advised to avoid the use of punctuation and non-printing characters, as they may create problems for other software. Figure 7 provides a BNF grammar for HDF5 path names.

PathName ::= AbsolutePathName | RelativePathName Separator ::= "/" ["/"]* AbsolutePathName ::= Separator [ RelativePathName ] RelativePathName ::= Component [ Separator RelativePathName ]* Component ::= "." | Characters Characters ::= Character+ - { "." } Character ::= {c: c Î { { legal ASCII characters } - {'/'} }

Figure 7: A BNF grammar for for HDF5 path names

Figure 8: An HDF5 file with a directed graph group structure, including a circular reference

An object can always be addressed by a either a full or absolute path name, starting at the root group, or by a relative path name, starting in a known location such as the current working group. As noted elsewhere, a given object may have multiple full and relative path names.

Consider, for example, the file illustrated in Figure 8. Dataset1 can be identified by either of these absolute path names:

    /GroupA/Dataset1
    /GroupA/GroupB/GroupC/Dataset1

    /GroupA/GroupB/GroupC/GroupA/Dataset1

Alternatively, if the current working location is GroupB, Dataset1 can be identified by either of these relative path names:

    GroupC/Dataset1
    GroupC/GroupA/Dataset1

Note that relative path names in HDF5 do not employ the ../ notation, the UNIX notation indicating a parent directory, to indicate a parent group.

3. Using h5dump

In the case of the new group created in section 5.1, “Creating a group,” the following h5dump command will display the contents of FileA.h5:

h5dump FileA.h5

Assuming that the discussed objects, GroupA and GroupB are the only objects that exist in FileA.h5, the output will look something like the following:

HDF5 "FileA.h5" {
GROUP "/" {
GROUP GroupA {
GROUP GroupB {
}
}
}
}

h5dump is fully described on the Tools page of the HDF5 Reference Manual. The HDF5 DDL grammar is fully described in the document DDL in BNF for HDF5, an element of the HDF5 User's Guide.

4. Group Function Summaries (H5G)

5. Programming Model: Working with Groups

The programming model for working with groups is as follows:

1. Create a new group or open an existing one.
2. Perform the desired operations on the group.
   • Create new objects in the group.
   • Insert existing objects as group members.
   • Delete existing members.
   • Open and close member objects.
   • Access information regarding member objects.
   • Iterate across group members.
   • Manipulate links.
3. Terminate access to the group. (Close the group.)

To create a group, use H5Gcreate, specifying the location and the path of the new group. The location is the identifier of the file or the group in a file with respect to which the new group is to be identified. The path is a string that provides wither an absolute path or a relative path to the new group (see section 2.3, “HDF5 Path Names”). A path that begins with a slash (/) is an absolute path indicating that it locates the new group from the root group of the HDF5 file. A path that begins with any other character is a relative path. When the location is a file, a relative path is a path from that file's root group; when the location is a group, a relative path is a path from that group.

The sample code in Figure 9 creates three groups. The group Data is created in the root directory; two groups are then created in /Data, one with absolute path, the other with a relative path.

hid_t file; file = H5Fopen(....); group = H5Gcreate(file, "/Data", 0); group_new1 = H5Gcreate(file, "/Data/Data_new1", 0); group_new2 = H5Gcreate(group, "Data_new2", 0);

Figure 9: Creating three new groups

The third H5Gcreate parameter optionally specifies how much file space to reserve to store the names that will appear in this group. If a non-positive value is supplied, a default size is chosen.

5.2 Opening a group and accessing an object in that group

Any object in a group can be also accessed by its absolute or relative path. To open an object using a relative path, an application must first open the group or file on which that relative path is based. To open an object using an absolute path, the application can use any location identifier in the same file as the target object; the file identifier is commonly used, but object identifier for any object in that file will work. Both of these approaches are illustrated in Figure 10 offers example code in the first two lines to open a group then open a dataset with the appropriate relative path to open the same dataset with an abslolute path and .

Using the file created in the examples above, Figure 10 provides example code illustrating the use of both relative and absolute paths to access an HDF5 data object. The first sequence (two function calls) uses a previously-acquired file identifier to open the group Data then uses the returned group identifier and a relative path to open the dataset CData. The second approach (one function call) uses the same previously-acquired file identifier and an absolute path to open the same dataset.

group = H5Gopen(file, "Data"); dataset1 = H5Dopen(group, "CData"); dataset2 = H5Dopen(file, "/Data/CData");

Figure 10: Open a dataset with relative and absolute paths

5.3 Creating a dataset in a specific group

dataspace = H5Screate_simple(RANK, dims, NULL); dataset1 = H5Dcreate(file, "/Data/CData", H5T_NATIVE_INT, dataspace, H5P_DEFAULT); group = H5Gopen(file, "Data"); dataset2 = H5Dcreate(group, "Cdata2", H5T_NATIVE_INT, dataspace, plist);

Figure 11: Create a dataset with absolute and relative paths

5.4 Closing a group

As illustrated in Figure 12, all that is required for an H5Gclose call is the group identifier acquired when the group was opened; there are no relative versus absolute path considerations.

herr_t status; status = H5Gclose(group);

Figure 12: Close a group

A non-negative return value indicates that the group was successuflly closed and the resources released; a negative return value indicates that the attempt to close the group or release resources failed.

5.5 Creating Links

A link is, in effect, is a path by which the target object can be accessed; it therefore has a name which functions as a single path component. A link can be removed with an H5Gunlink call, effectively removing the target object from the group that contained the link (assuming, of course, that the removed link was the only link to the target object in the group).

Hard links
There are two kinds of links, hard links and soft links. Hard links are reference counted; soft links are not. When an object is created, a hard link is automatically created. An object can be deleted from the file by removing all the hard links to it.

Working with the file from the previous examples, the code in Figure 13 illustrates the creation of a hard link, named Data_link, in the root group, /, to the group Data. Once that link is created, the dataset Cdata can be accessed via either of two absolute paths, /Data/Cdata or /Data_Link/Cdata.

status = H5Glink(file, H5G_LINK_HARD, "Data", "Data_link"); dataset1 = H5Dopen(file, "/Data_link/CData"); dataset2 = H5Dopen(file, "/Data/CData");

Figure 13

This and subsequent examples could also use H5Glink2, which is used exactly like H5Glink except that a second location identifier is specified and the new object name is specified relative to the second location identifier.

Figure 14 shows example code to delete a link, deleting the hard link Data from the root group. The group /Data and its members are still in the file, but they can no longer be accessed via a path using the component /Data.

status = H5Gunlink(file, "Data"); dataset1 = H5Dopen(file, "/Data_link/CData"); /* This call should succeed; all path component still exist*/ dataset2 = H5Dopen(file, "/Data/CData"); /* This call will fail; the path component '/Data' has been deleted*/

Figure 14

When the last hard link to an object is deleted, the object is no longer accessible (although space in the file may not be deallocated). Figure 15 shows deletion of the last link, Data_link, to the group originally called Data. After the unlinking operation, the group is no longer accessible; consequently, the dataset Cdata is inaccessible.

status = H5Gunlink(file, "Data_link"); dataset = H5Dopen(file, "/Data_link/CData"); /* This call will fail; the dataset is no longer accessible */

Figure 15

Soft links
Soft links are objects that assign a name in a group to a path. Notably, the target object is determined only when the soft link is accessed, and may, in fact, not exist. Soft links are not reference counted, so there may be one or more soft links to an object.

Like hard links, soft links are also created and deleted with the H5Glink, H5Glink2, and H5Gunlink functions, except that soft links are created as type H5G_LINK_SOFT while hard links are created as type H5G_LINK_HARD.

Returning to our sample file as it was initially created, Figure 16 shows examples of creating two soft links to the group /Data.

status = H5Glink(file, H5G_LINK_SOFT, "Data", "Soft2"); status = H5Glink(file, H5G_LINK_SOFT, "Soft2", "Soft3"); dataset = H5Dopen(file, "/Soft2/CData");

Figure 16

With the soft links defined in Figure 16, the dataset CData in the group /Data can now be opened with any of the names /Data/CData, /Soft2/CData, or /Soft3/CData.

Note regarding hard links versus soft links
Note that an object's existence in a file is governed by the presence of at least one hard link to that object. If the last hard link to an object is removed, the object is removed from the file and any remaining soft link becomes a dangling link, a link whose target object does not exist.

Moving or renaming objects, and a warning
An object can be renamed by changing the name of a link to it with either H5Gmove or H5Gmove2. This has the same effect as creating a new link with the new name and deleting the link with the old name.

Exercise caution in the use of H5Gmove, H5Gmove2 and H5Gunlink as these functions each include a step that unlinks a pointer to a dataset or group. If the link that is removed is on the only path leading to an HDF5 object, that object will become permanently inaccessible in the file.

Consider the following example: assume that the group group2 can only be accessed via the following path, where top_group is a member of the file‘s root group:
        /top_group/group1/group2/

Using H5Gmove or H5Gmove2, top_group is renamed to be a member of group2. At this point, since top_group was the only route from the root group to group1, there is no longer a path by which one can access group1, group2, or any member datasets. And since top_group is now a member of group2, top_group itself and any member datasets have thereby also become inaccessible.

6. Discovering Information about Objects

• The file and object identifiers, which together provide unique identification of the object
• The number of references, or hard links, to the object
• The object type: group, dataset, named datatype, or soft link, returned as H5G_GROUP, H5G_DATASET, H5G_TYPE, or H5G_LINK, respectively
• The modification time (datasets only)
• A link length value; the length of the path name of a symbolic link's target object (returned for symolic links, or soft links, only)

The H5G_stat_t structure specification and the H5Gget_objinfo function signature appear in Figure 17. The H5G_stat_t structure elements are as listed above. The H5Gget_objinfo function parameters are used follows:

• loc_id specifies the object for which information being sought.
• A path to the object is returned in name.
• follow_link is a Boolean value specifying whether to follow a soft link and open the target object (TRUE) or not (FALSE).
• The H5G_stat_t struct is returned in the statbuf buffer.

typedef struct H5G_stat_t { unsigned long fileno[2]; unsigned long objno[2]; unsigned nlink; int type; time_t mtime; size_t linklen; } H5G_stat_t herr_t H5Gget_objinfo(hid_t loc_id, const char *name, hbool_t follow_link, H5G_stat_t *statbuf )

Figure 17: The H5G_stat_t struct specification and the H5Gget_objinfo function signature

Figure 18 provides a code example that prints the local paths to the members of a group, following a soft link when it is found.

H5G_stat_t statbuf; H5Gget_objinfo(loc_id, name, FALSE, &statbuf); switch (statbuf.type) { case H5G_GROUP: printf(" Object with name %s is a group \n", name); break; case H5G_DATASET: printf(" Object with name %s is a dataset \n", name); break; case H5G_TYPE: printf(" Object with name %s is a named datatype \n", name); break; case H5G_LINK: lname = (char *)malloc(statbuf.linklen); H5Gget_linkval(loc_id, name, statbuf.linklen, lname); printf(" Object with name %s is a link to %s \n", name, lname); H5Gget_objinfo(loc_id, name, TRUE, &statbuf); switch (statbuf.type) { case H5G_GROUP: printf(" Target of link name %s is a group \n", name); break; case H5G_DATASET: printf(" Target of link name %s is a dataset \n", name); break; case H5G_TYPE: printf(" Target of link name %s is a named datatype \n", name); break; case H5G_LINK: printf(" Target of link name %s is a soft link \n", name); break; default: printf(" Unable to identify target "); } break; default: printf(" Unable to identify an object "); }

Figure 18: Printing a specified object's name and type and, in the case of a link, opening the target object

7. Discovering Objects in a Group

An alternative approach is to determine the number of objects in a group then approach them one at a time. This is accomplished with the functions H5Gget_num_objs, H5Gget_objname_by_idx, and H5Gget_objtype_by_idx.

H5Gget_num_objs retrieves the number of objects, say n, in the group. The values from 0 through n - 1 can then be used as indices to access the members of the group. For example, an index value of 0 identifies the first member, an index value of 1 identifies the second member, and an index value of n - 1 identifies the last member. (Note that HDF5 objects do not have permanent indices; these values are strictly transient and may be different each time a group is opened.)

Using the index described above, the name and object type can be retrieved using H5Gget_objname_by_idx and H5Gget_objtype_by_idx, respectively. With the name and object type, an application can proceed to operate as necessary on all or selected group members.

8. Discovering All the Objects in the File

The function H5Giterate, used to discover the members of a group, is the key to the discovery process. An application calls H5Giterate with a pointer to a callback function (see Figure 19). The HDF5 library iterates through the group specified by the loc_id and name parameters, calling the callback function once for each group member. The callback function must have the signature defined by H5G_iterate_t. When invoked, the arguments to the callback function are the group being iterated, the group member’s name (the object name), and a pointer set by the user program. The callback function is part of the application, so it can execute any actions the program requires to discover and store information about the objects.

typedef herr_t (*H5G_iterate_t)(hid_t group_id, const char *member_name, void *operator_data); H5Giterate(hid_t loc_id, const char * name, int *idx, H5G_iterate_t operator, void *operator_data );

Figure 19

Note that the H5Giterate function is following the links from a single group; these links correspond to the components in a path name. To iterate over an entire substructure, H5Giterate must be recursively on every member of the original group that turns out to also be a group. To iterate over an entire file, the first call to H5Giterate must iterate over the root group; subsequent calls to H5Giterate must then iterate over every subsequent group.

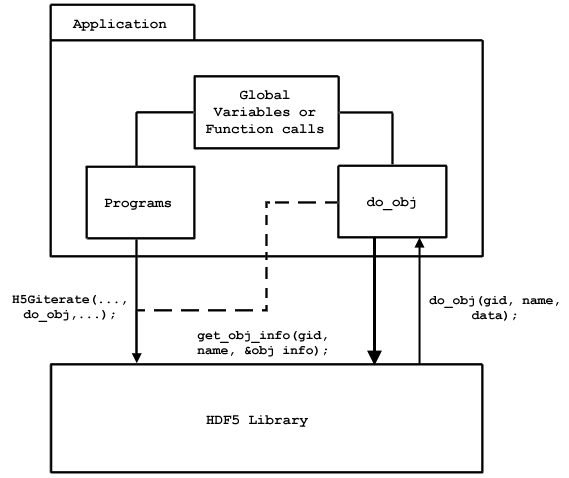

Figure 20 illustrates the relationship between the calling module of the application, the callback function (do_obj), and calls to the HDF5 library. In this diagram, “Global Variables and Functions” symbolizes the fact that the callback function executes as part of the application, and may therefore call functions and update data structures to describe the file and its objects.

Figure 20: Relationships between a calling module, the callback function, and the callback function's calls back to the HDF5 library

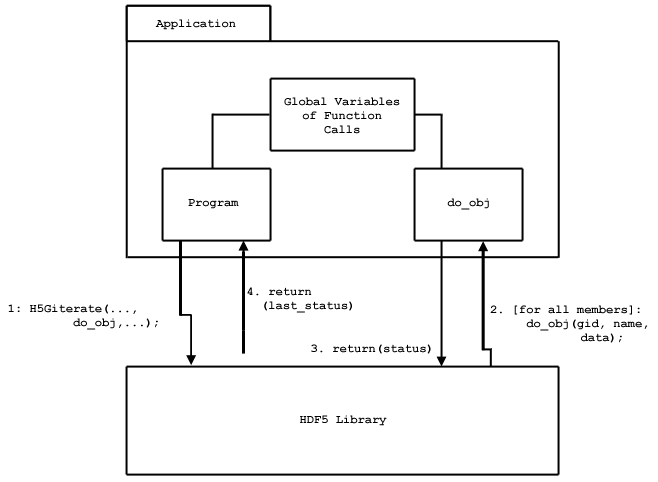

Figure 21 illustrates the sequence of events precipitated by an H5Giterate call.

1. The application first calls H5Giterate, passing a pointer to a callback function (do_obj in the figure). Note that the callback function is part of the application.
2. The HDF5 library then iterates through the members of the group, calling the callback function in the application once for each group member.
3. When the iteration is complete, the H5Giterate call returns to the calling application.

Figure 21

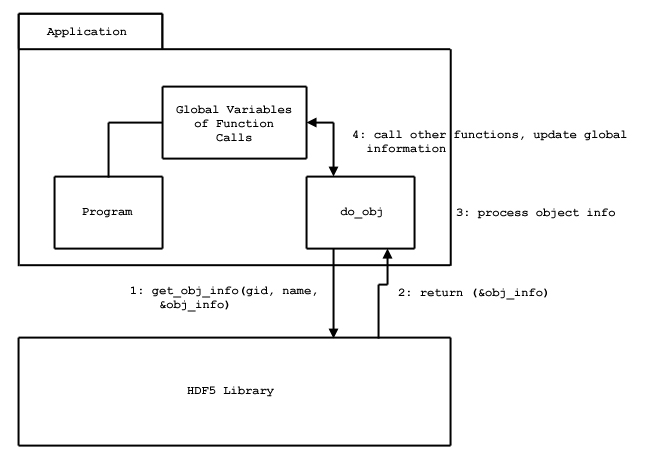

Figure 22 shows the sequence of calls involved in one iteration of a callback function that employs the HDF5 function H5Gget_objinfo to discover properties of the object that is the subject of the current step of the iteration (e.g., the object’s type and reference count). The HDF5 library then calls the application’s callback function do_obj(), which in turn calls the HDF5 library to get the object information. The callback function can process the information as needed, accessing any function or data structure of the application program, and it can call the HDF5 library again to, for example, iterate through a group member that is itself a group.

Figure 22

Over the course of a successful H5Giterate call, the HDF5 library will call the application’s callback function once for each member of the group, as illustrated in Figure 23. At each iteration, the callback function must return a status which implies a subsequent course of action:
     1   Continue iterating.
     0   Stop iterating and return to the caller.

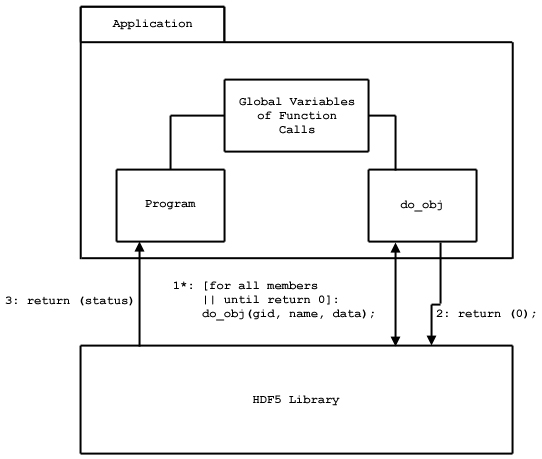

Once the iteration has been completed, H5Giterate returns to the calling application.

Figure 23

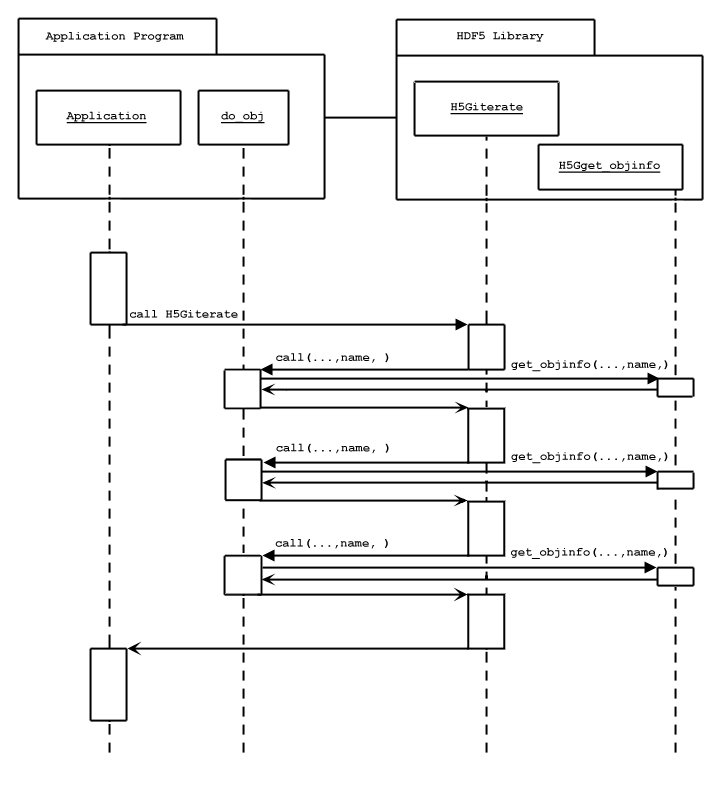

The overall sequence of calls can become quite complex, especially when the callback function in turn calls the HDF5 library. Figure 24 provides a sequence diagram for a case similar to the simple case described above:

1. The calling program invokes H5Giterate on a group,
2. which calls do_obj once for each group members (three group members in this case).
3. The do_obj callback function in turn calls H5Gget_objinfo each time it is invoked to discover information about each object.

Figure 24

Recursively iterating through the members of every group will result in visiting an object once for each link to it. This may result in visiting an object more than once. The calling application must be prepared to recognize this case and handle it appropriately. If an action should be undertaken only once per object, the application must make sure that it does not repeat the action for an object with two links. For example, if the objects are being copied, it is important that an object with two names be copied once, not twice. Figure 25 illustrates this case.

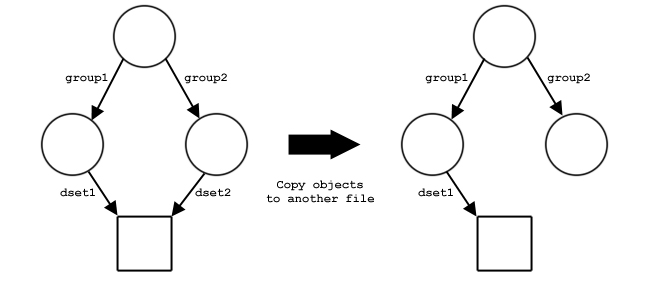

a) The required action is to copy all the objects from one file to another.

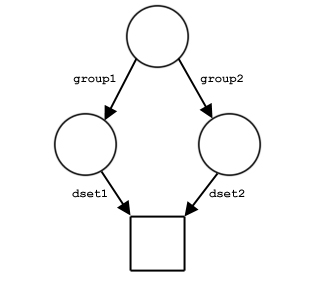

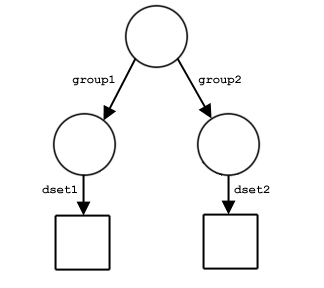

b) A shared dataset should not be copied twice.	c) A shared dataset should be copied once and the apppropriate link should be created.
Figure 25

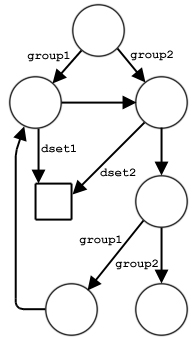

Figure 26

There is a second important case when the twice-visited member is a group. Any Group with more than one link to it can potentially be part of a circular path. I.e., recursively iterating through member groups may eventually bring the the iteration back to the current group and may generate an infinite path within the file’s linked structure. To embark upon the resulting infinite iteration would clearly be unacceptable in the general case. Figure 26 illustrates an HDF5 file with such potential.

In such a case, the callback function should check the reference count in the H5G_stat_t buffer as returned by H5Gget_objinfo. If the count is greater than one, there is more than one path to the object in question and it may be in a loop; the program should act accordingly. For example, it may be necessary to construct a global table of all the objects visited. Note that the object’s name is not unique, but the full path and the object number (found in the above-mentioned H5G_stat_t buffer) are unique within an individual HDF5 file.

9. Examples of File Structures

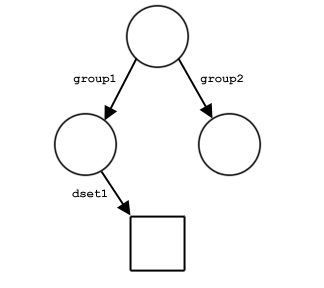

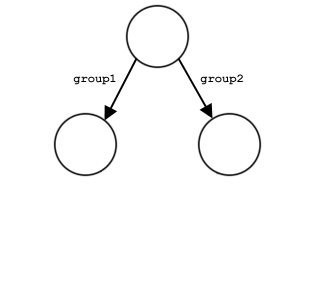

a) The file contains three groups: the root group, /group1, and /group2.		b) The dataset dset1 (or /group1/dset1) is created in /group1.
c) A link named dset2 to the same dataset is created in /group2.		d) The link from /group1 to dset1 is removed. The dataset is still in the file, but can be accessed only as /group2/dset2.
Figure 27

Figure 27 shows examples of the structure of a file with three groups and one dataset. The file in Figure 27a contains three groups: the root group and two member groups. In Figure 27b, the dataset dset1 has been created in /group1. In Figure 27c, a link named dset2 from /group2 to the dataset has been added. Note that there is only one copy of the dataset; there are two links to it and it can be accessed either as /group1/dset1 or as /group2/dset2.

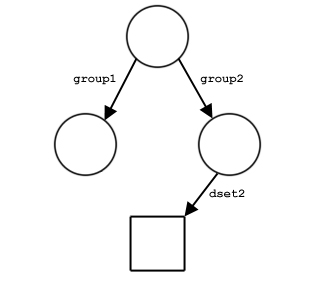

Figure 27d illustrates that one of the two links to the dataset can be deleted. In this case, the link from /group1 has been removed. The dataset itself has not been deleted; it is still in the file but can only be accessed as /group1/dset2.

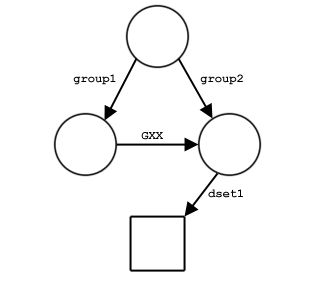

a) dset1 has two names: /group2/dset1 and /group1/GXX/dset1.		b) dset1 again has two names: /group1/dset1 and /group1/dset2.
c) dset1 has three names: /group1/dset1, /group2/dset2, and /group1/GXX/dset2.		d) dset1 has an infinite number of available path names.
Figure 28

Figure 28 illustrates loops in an HDF5 file structure. The file in Figure 28a contains three groups and a dataset; group2 is a member of the root group and of the root group’s other member group, group1. group2 thus can be accessed by either of two paths: /group2 or /group1/GXX. Similarly, the dataset can be accessed either as /group2/dset1 or as /group1/GXX/dset1.

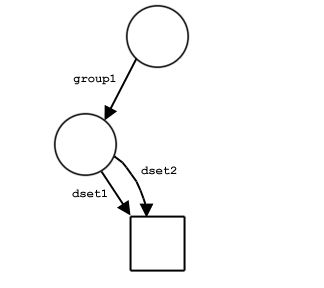

Figure 28b illustrates a different case: the dataset is a member of a single group but with two links, or names, in that group. In this case, the dataset again has two names, /group1/dset1 and /group1/dset2.

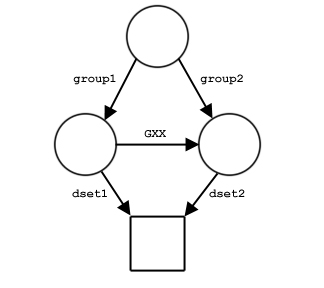

In Figure 28c, the dataset dset1 is a member of two groups, one of which can be accessed by either of two names. The dataset thus has three path names: /group1/dset1, /group2/dset2, and /group1/GXX/dset2.

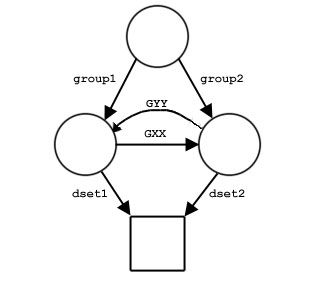

And in Figure 28d, two of the groups are members of each other and the dataset is a member of both groups. In this case, there are an infinite number of paths to the dataset because GXX and GYY can be traversed any number of times on the way from the root group, /, to the dataset. This can yield a path name such as /group1/GXX/GYY/GXX/GYY/GXX/dset2.

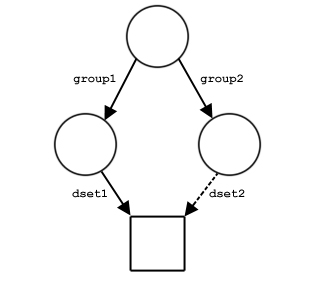

a) The file contains only hard links.		b) A soft link is added from group2 to /group1/dset1.

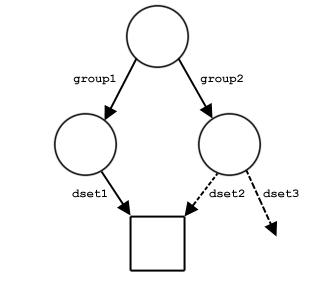

c) A soft link named dset3 is added with a target that does not yet exist.		d) Tht target of soft link is created or linked.
Figure 29

Figure 29 takes us into the realm of soft links. The original file, in Figure 29a, contains only three hard links. In Figure 29b, a soft link named dset2 from group2 to /group1/dset1 has been created, making this dataset accessible as /group2/dset2.

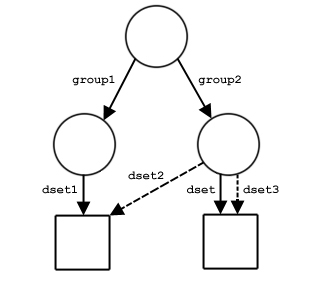

In Figure 29c, another soft link has been created in group2. But this time the soft link, dset3, points to a target object that does not yet exist. That target object, dset, has been added in Figure 29d and is now accessible as either /group2/dset or /group2/dset3.

¹It could be said that HDF5 extends the organizing concepts of a file system to the internal structure of a single file.

²As of HDF5-1.4, the storage used for an object is reclaimed, even if all links are deleted.
